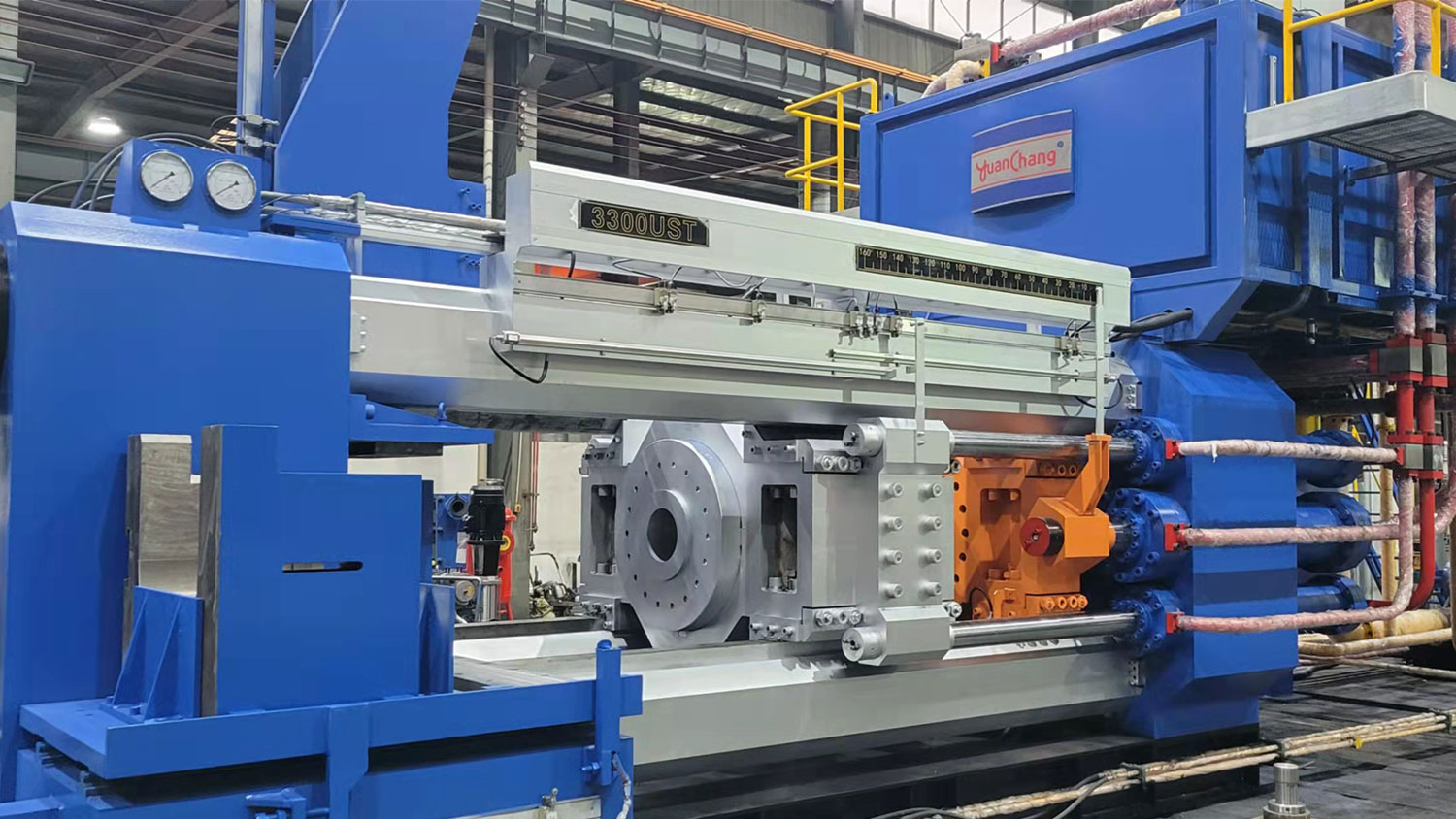

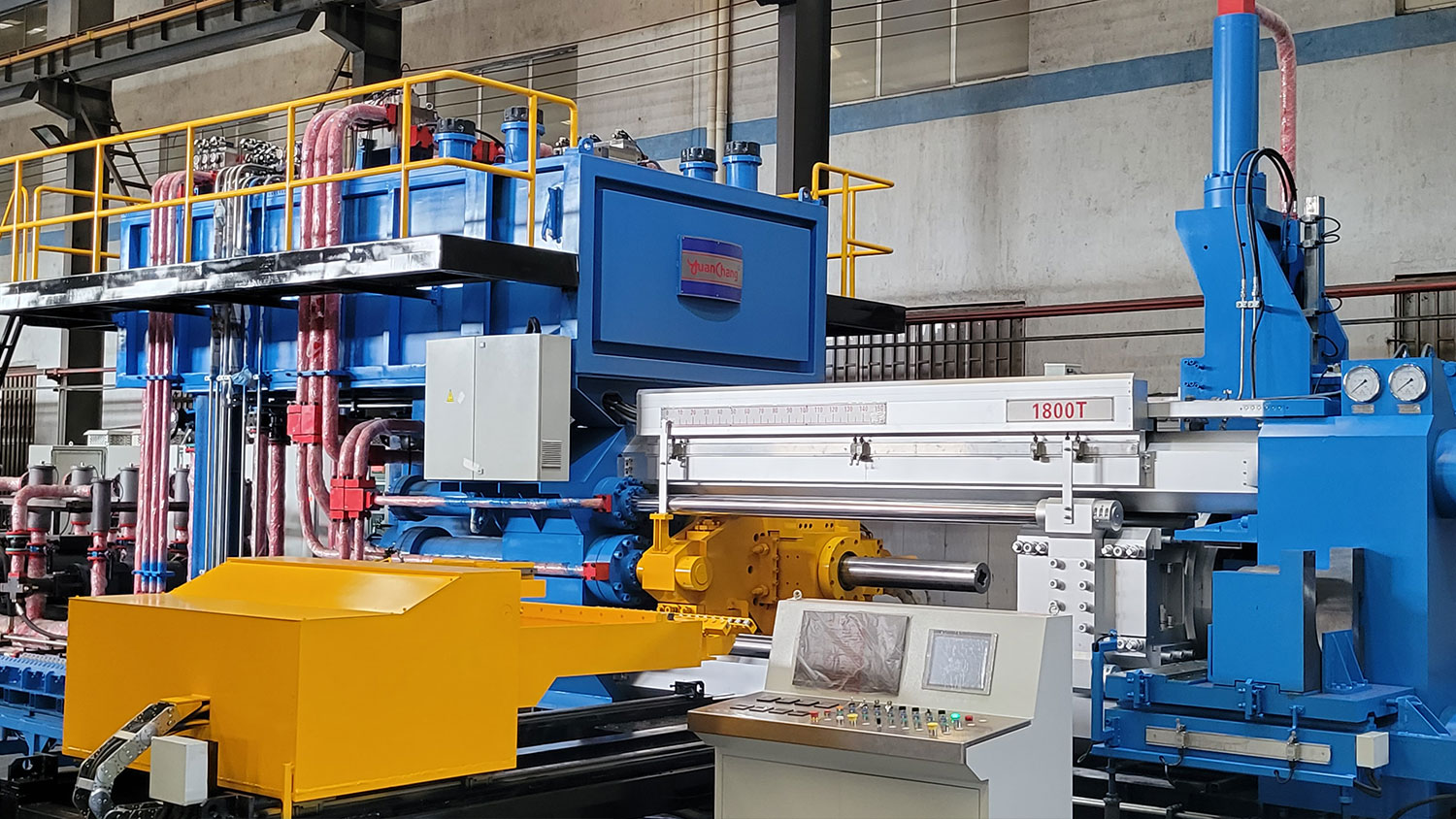

Yuan Chang double action extruder, positive and negative extruder series extruder is suitable for aluminum alloy extrusion processing, its equipment can be used to produce all kinds of construction, rail transit, auto parts, aviation and other types of profiles.

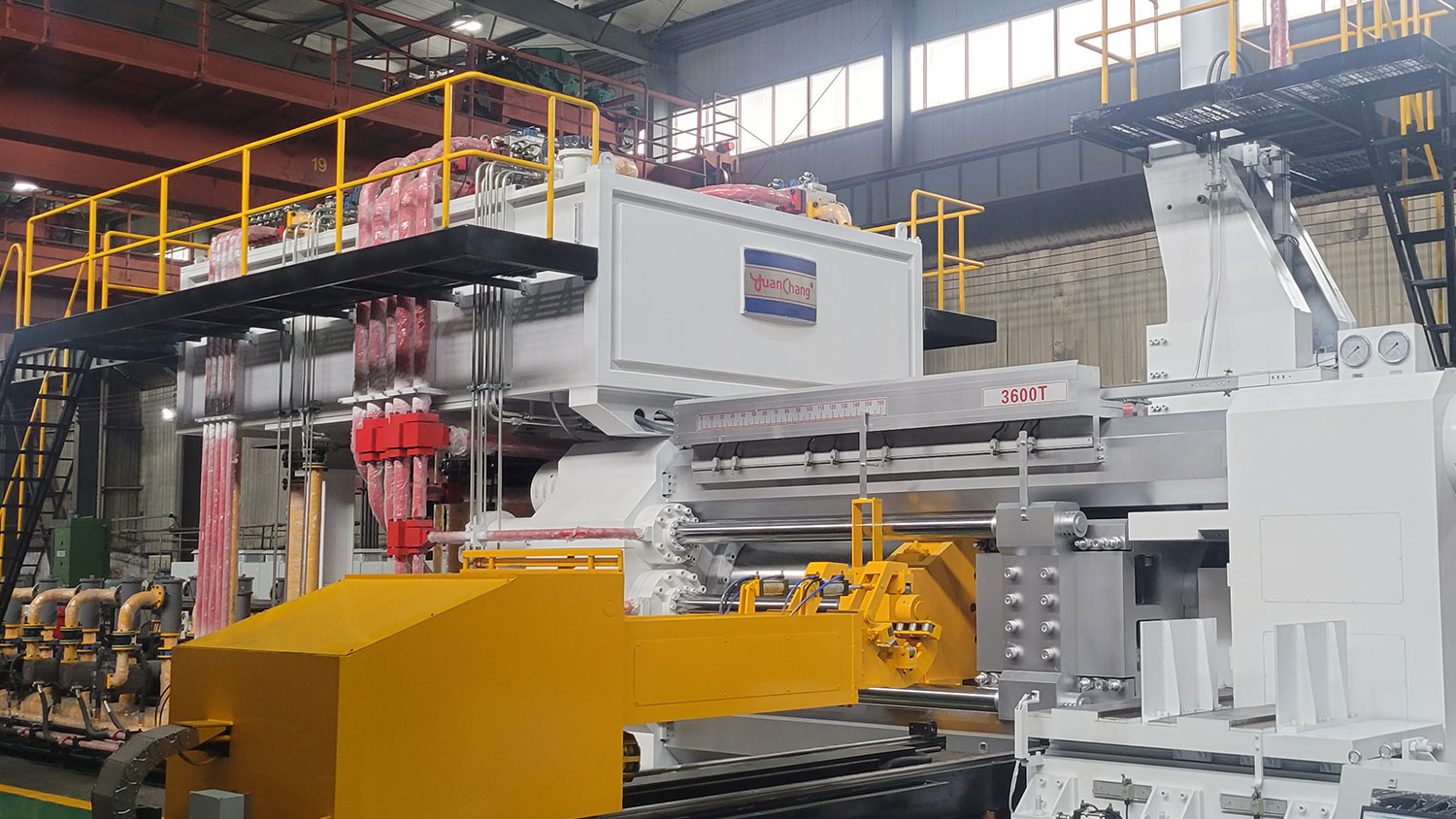

The whole machine adopts four-column horizontal type, the fuel tank is placed on the top, has the characteristics of compact structure, easy installation and maintenance.
perforated moving beam; The movable beam adopts four-point positioning and the center is adjustable.
The following needle and fixed needle two extrusion processes to meet the extrusion requirements of different pipe diameters.
Hydraulic system adopts large flow plug valve, stable performance, large flow rate, low temperature rise.
Adopt PLC control, adopt human-machine interface real-time monitoring extrusion process parameters.
Our electrical control system uses top international electrical components, supports constant speed and variable speed control, real-time monitoring and setting of main parameters, has fault alarm and self-diagnosis functions, and features multiple protection functions to ensure the safety of operators and equipment. In addition, our system supports the interface standards of the Industry 4.0 platform, enhancing production efficiency and the quality of customer service.
Based on our decades of profound understanding of non-ferrous metal extrusion processes, we continuously drive structural innovation and manufacturing optimization of hydraulic systems. We are constantly upgrading the design concept and assembly process of the hydraulic system, striving to achieve clearer pipelines, more precise layout, and reach a new level in terms of structural stability and system cleanliness.
It is used for the function of quickly changing molds, reducing unnecessary extrusion waiting time.
The oil pump is driven by a servo motor instead of a common motor. Due to the fast response, stable speed and convenient start and stop control of the servo motor, the production capacity of the aluminum profile extruder is higher and the energy consumption is lower, generally saving 20% to 30% of energy.

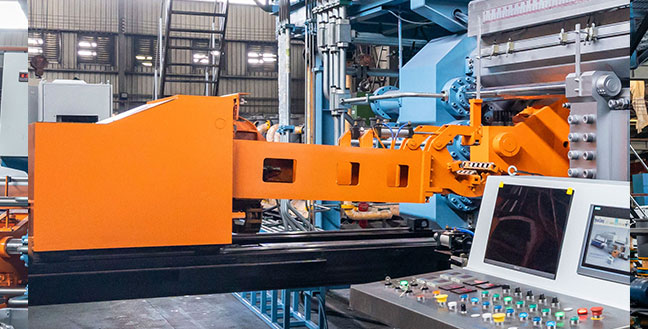

is driven by a servo motor to move the feeding trolley forward and backward, horizontally transporting the aluminum bar from the loading position to the extrusion position.
It features the setting of parameters such as extrusion speed, displacement, pressure, extrusion cylinder temperature, and oil temperature alarm, as well as the inspection and monitoring display of input and output points.

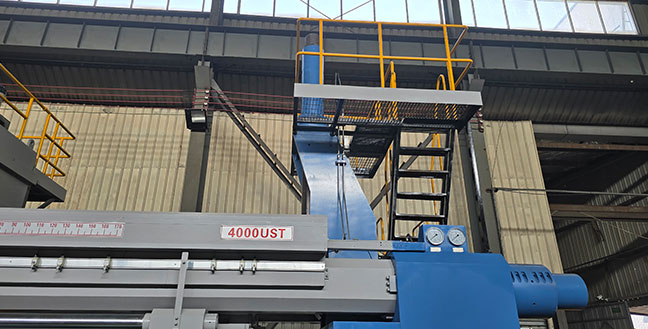

The overall frame is prestressed with a hydraulic special tool to enhance the rigidity of the extruder frame components.

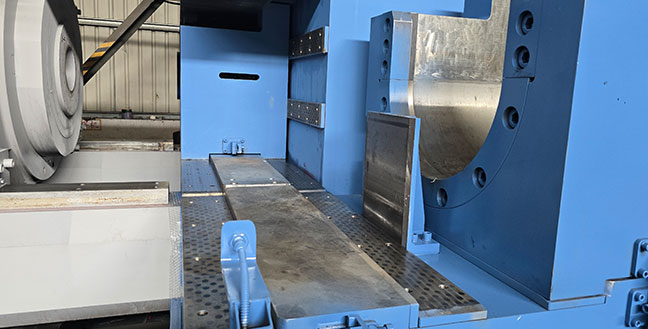

The shear column adopts an X-shaped guide rail structure for better guidance, and the residual pressure shear end face is flat.
The core control module adopts imported solenoid valves and proportional valve components, featuring fast response speed and high control accuracy, and is stably adapted to the requirements of multi-axis synchronization and complex action control

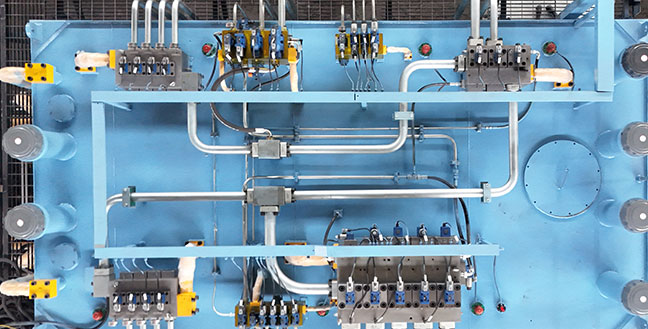

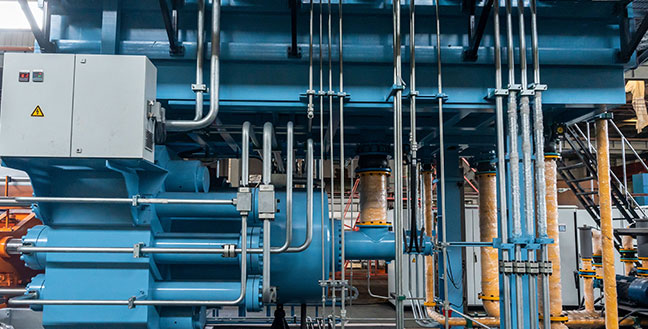

The pipeline system selects high-strength galvanized steel pipes and adopts non-welding connection technology, which comprehensively enhances the sealing performance and pressure resistance level, avoiding the leakage and stress concentration problems caused by traditional welding.

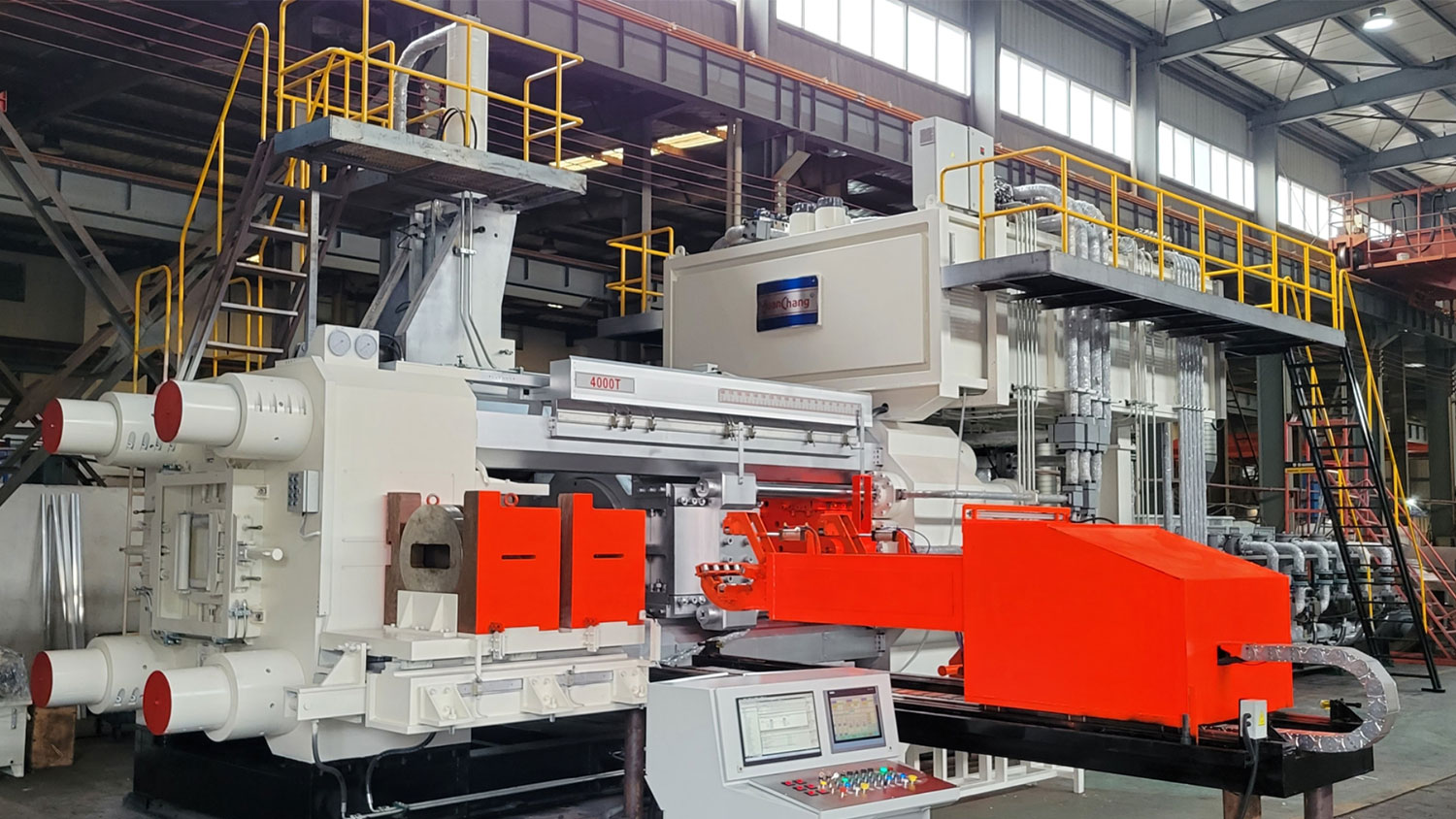

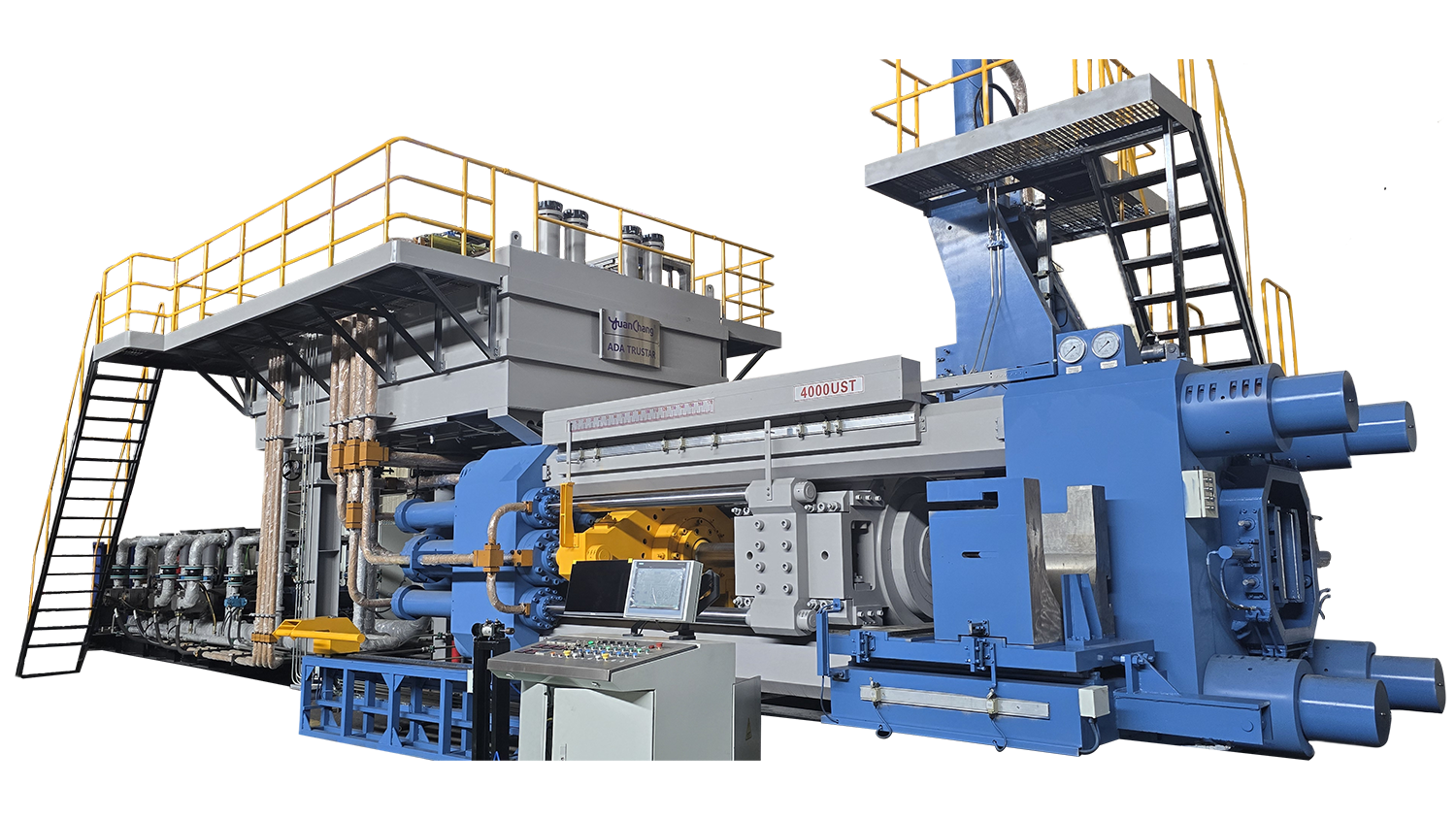

Product Parameters (Universal for aluminum alloy and copper alloy) | ||
Material: Aluminum alloy Rated extrusion pressure: 1100UST Maximum bar length: 600mm Extrusion speed: 0.2-15mm/s | Material: Aluminum alloy Rated extrusion pressure: 1650UST Maximum bar length: 800mm Extrusion speed: 0.2-16mm/s | Material: Aluminum alloy Rated extrusion pressure: 2200UST Maximum bar length: 1000mm Extrusion speed: 0.2-20mm/s |
Material: Aluminum alloy Rated extrusion pressure: 2750UST Maximum bar length: 1050mm Extrusion speed: 0.2-20 mm/s | Material: Aluminum alloy Rated extrusion pressure: 3300UST Maximum bar length: 1200mm Extrusion speed: 0.2-20mm/s | Material: Aluminum alloy Rated extrusion pressure: 4000UST Maximum bar length: 1250mm Extrusion speed: 0.2-20mm/s |
Material: Aluminum alloy | Material: Aluminum alloy Rated extrusion pressure: 5000UST Maximum bar length: 1350mm Extrusion speed: 0.2-20mm/s | |
Model number | Rated pressure ﹙MPa﹚ | Aluminum rod specification ﹙㎜﹚ | Length of aluminum rod ﹙㎜﹚ | Total power ﹙KW﹚ | Overall dimensions L×W×H﹙m﹚ |
Nominal force T(UST) | |||||
XJ-630(690UST） | 21 | Φ80-Φ100 | 500 | 120 | 8.0×3.2×2.8 |
XJ-800(880UST） | 21 | Φ100-Φ130 | 550 | 250 | 11.0×3.5×3.2 |
XJ-1000(1100UST） | 21 | Φ110-Φ140 | 600 | 250 | 11.5×3.8×3.4 |
XJ-1350(1500UST） | 25 | Φ120-Φ152 | 750 | 400 | 12.5×4.2×3.8 |
XJ-1500(1650UST） | 25 | Φ127-Φ152 | 850 | 400 | 13.5×4.2×3.8 |
XJ-1800(2000UST） | 28 | Φ152-Φ203 | 950 | 600 | 15.5×6.0×4.2 |
XJ-2000(2200UST） | 28 | Φ178-Φ228 | 1000 | 600 | 16.0×6.5×4.5 |
XJ-2200(2400UST） | 28 | Φ178-Φ228 | 1050 | 750 | 16.5×6.5×4.5 |
XJ-2500(2750UST） | 28 | Φ203-Φ254 | 1050 | 750 | 18.0×7.5×5.5 |
XJ-2750(3000UST） | 28 | Φ203-Φ254 | 1100 | 850 | 18.0×7.5×5.5 |
XJ-3000(3300UST） | 28 | Φ228-Φ280 | 1150 | 1000 | 19.0×8.0×6.0 |
XJ-3600(4000UST） | 28 | Φ254-Φ330 | 1200 | 1100 | 20.0×9.0×6.5 |
XJ-4000(4400UST） | 28 | Φ280-Φ330 | 1300 | 1100 | 20.0×9.0×6.5 |
XJ-4500(5000UST） | 28 | Φ280-Φ355 | 1300 | 1300 | 21.5×10.0×7.0 |
XJ-5500(6000UST） | 28 | Φ305-Φ406 | 1500 | 1500 | 23.0×11.0×7.5 |
XJ-6500(7000UST） | 28 | Φ330-Φ432 | 1600 | 1650 | 24.0×12.0×8.0 |
XJ-7500(8200UST） | 28 | Φ355-Φ457 | 1700 | 1800 | 25.0×14.0×8.5 |
